CS471: Web and Mobile Development - Food Bank Map RESTful Service (100 Points)

Assignment Goals

The goals of this assignment are:
  1. To implement a web service in node.js using express and mongoose
  2. To develop a front-end page that accesses that web service through the Google Maps API interface

The Assignment

If (and only if) you are using GitHub to submit, you can clone this assignment from GitHub Classroom at https://classroom.github.com/a/2v9HyXs8. Otherwise, you may skip this step!

In this lab, you will design a RESTful service interface that represents food bank locations, and implement it using node.js and a browser frontend that uses the Google Maps API [1]. Users should be able to POST food bank locations, and the browser script should place markers on the map along with the user’s current location.

Part 1: Service Backend and Testing

Design a RESTful web service in node.js that stores the name and address of food banks. In addition to storing the name and address, you should store the latitude and longitude of the location when you create or update a resource. You can lookup the latitude and longitude for the address by calling this API from ArcGIS.

You should support:

  • GET: Retrieve a list of all food banks
  • POST: Create a food bank given its name and address
  • PUT: Update a food bank given its ID, its new name and/or new address
  • DELETE: Delete a food bank given its ID

Test each of these using a client program, a web browser, or a cURL command, and show the results of your testing.

To support a web-based frontend, we will need to enable CORS on this server.

Part 2: Google Map Frontend Configuration and Tutorial

The example below shows a minimal working example of a Google Map that plots the location of Ursinus College, and plots a custom marker with a location given by the current location as obtained through the browser client. You can change this marker icon later by calling the Marker.setIcon(image); function.

Elements of the Working Example

Adding an Element to Hold the Map

First, set up a web page with a div element to hold the map. We’ll call it map.

<!DOCTYPE html>
<html>
<body>
<div id="map"></div>
</body>
</html>

Between the html and body opening tags, we can add CSS styling inline to set the size of the map:

  <html>
  <head>
    <style>
       /* Set the size of the div element that contains the map */
      #map {
        height: 400px;  /* The height is 400 pixels */
        width: 100%;  /* The width is the width of the web page */
       }
    </style>
  </head>
  <body>
  ...
  </body>

Inside the <body>, let’s call the Google Maps API script to render the map. We’ll provide a callback parameter which will invoke a script that we’ll write in our page. We’ll call this function initMap. You’ll also need an API Key, which we’ll discuss shortly.

    <body>
    ...
    <script defer
    src="https://maps.googleapis.com/maps/api/js?key=YOUR_API_KEY_HERE&callback=initMap">
    </script>
    ...
    </body>

To implement the initMap function, add a <script> tag inside your <body> tag. Our function creates a marker at a given latitude and longitude, and plots it on the map.

Note that the map variable is declared without a var tag. This places the variable into the global scope, so that we can access it from other script functions later.

    <body>
    <script>
    function initMap() {
      // The location of Ursinus College
      var ursinus = {lat: 40.1915, lng: -75.4559};
      // The map, centered at Ursinus
      map = new google.maps.Map(
          document.getElementById('map'), {zoom: 4, center: ursinus}); // no var == global scope
      // The marker, positioned at Ursinus College
      var marker = new google.maps.Marker({position: ursinus, map: map});
    }
    </script>
    ...
    </body>

At the end of the initMap() function, you can call navigator.geolocation.getCurrentPosition(showPosition), which will callback another function that you’ll write shortly, and that we’ll call showPosition. This gets the current latitude and longitude of the user, if they grant that permission to the browser. For clarity, we’ll place this geolocation call in another function called getLocation and call it from initMap. One note: repl.it doesn’t grant location permissions, so this won’t work there. You can take the URL from repl.it’s mini browser and open a new browser tab with that URL instead, and grant location permissions there.

    function getLocation() {
      // https://www.w3schools.com/html/html5_geolocation.asp
      if (navigator.geolocation) {
        navigator.geolocation.getCurrentPosition(showPosition); // callback
      } else {
        //Geolocation is not supported by this browser
      }
    }

    function initMap() {
        ...
        getLocation();
    }

Finally, let’s implement the showPosition function, which takes a single parameter representing the user’s location. We’ll create a second marker and place it on the map representing the user’s current location. This function goes with the other scripts on the page.

    function showPosition(position) {
      // display your position using a beach flag icon
      // https://developers.google.com/maps/documentation/javascript/markers
      var image = {
        url: 'https://developers.google.com/maps/documentation/javascript/examples/full/images/beachflag.png',
        // This marker is 20 pixels wide by 32 pixels high.
        size: new google.maps.Size(20, 32),
        // The origin for this image is (0, 0).
        origin: new google.maps.Point(0, 0),
        // The anchor for this image is the base of the flagpole at (0, 32).
        anchor: new google.maps.Point(0, 32)
      };

      var currentPosition = {lat: position.coords.latitude, lng: position.coords.longitude};
      var currentLocationMarker = new google.maps.Marker({position: currentPosition, icon: image, map: map});
    }

Setting up a Google Maps API Key

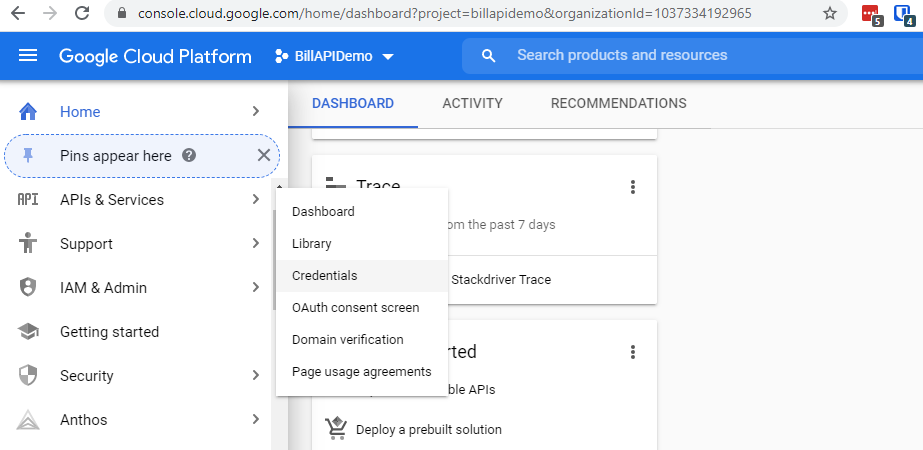

To obtain a Google API key on your account, first go to https://console.cloud.google.com, and log into your Google account. Select “Credentials” under the “APIs and Services” menu on the left.

Google API Key

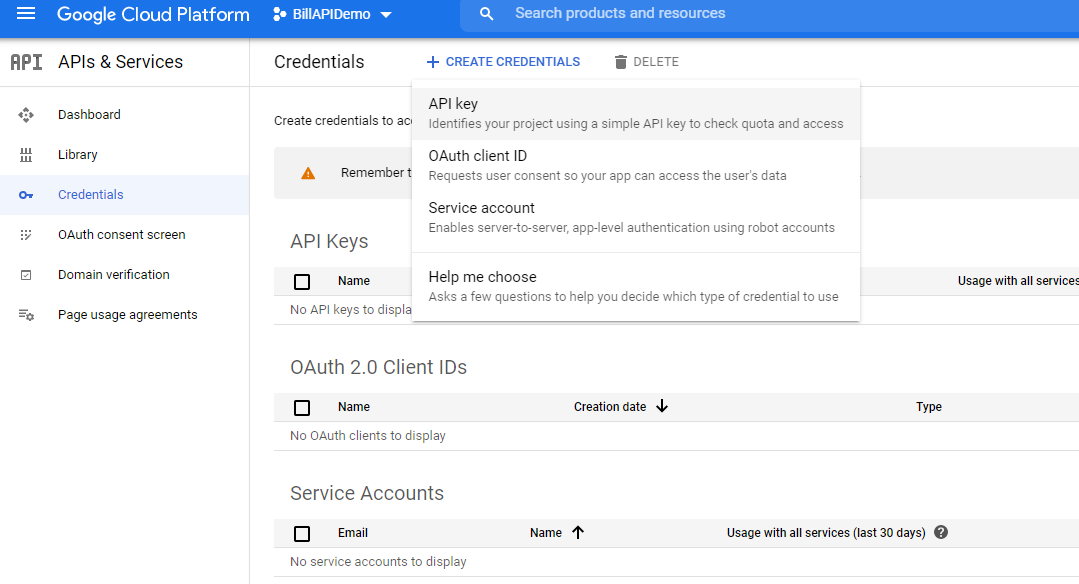

Select your project from the top (or create a new one if prompted), and click the “Create Credentials” button near the top middle of the page. Select “API key” to create a new key.

Google API Credentials

Fill out the form that appears and you will be given an API key. Copy this down: it will go into your webpage above at the placeholder YOUR_API_KEY_HERE.

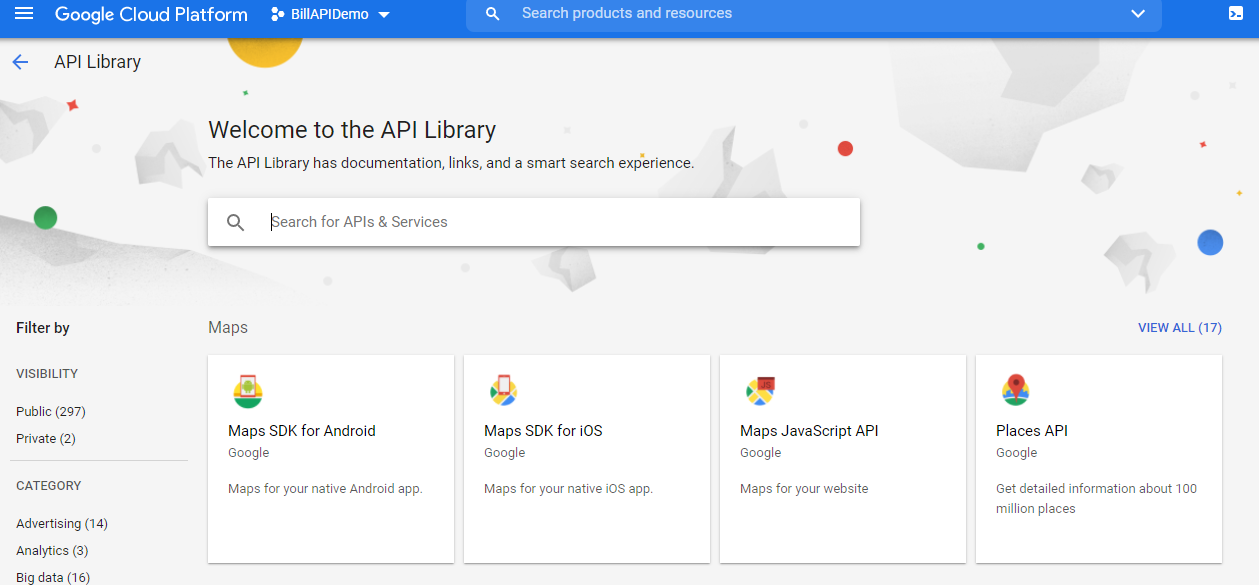

Next, click the “Library” menu on the left, and search for the “Maps JavaScript API” service. Click on it.

Google API Library of Services

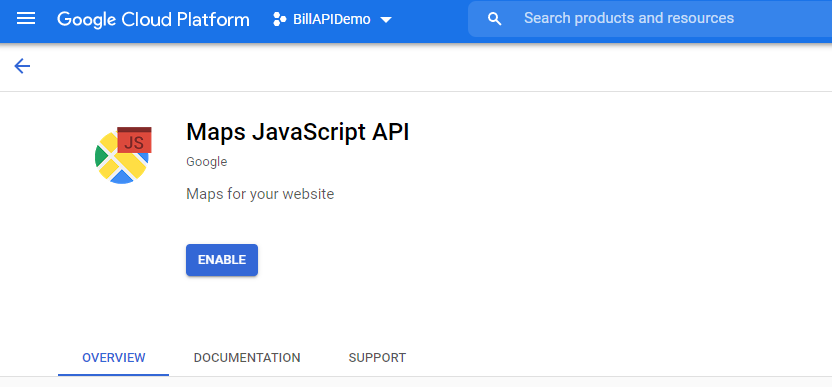

Click “Enable” to add it to your project and key.

Enabling Maps Service

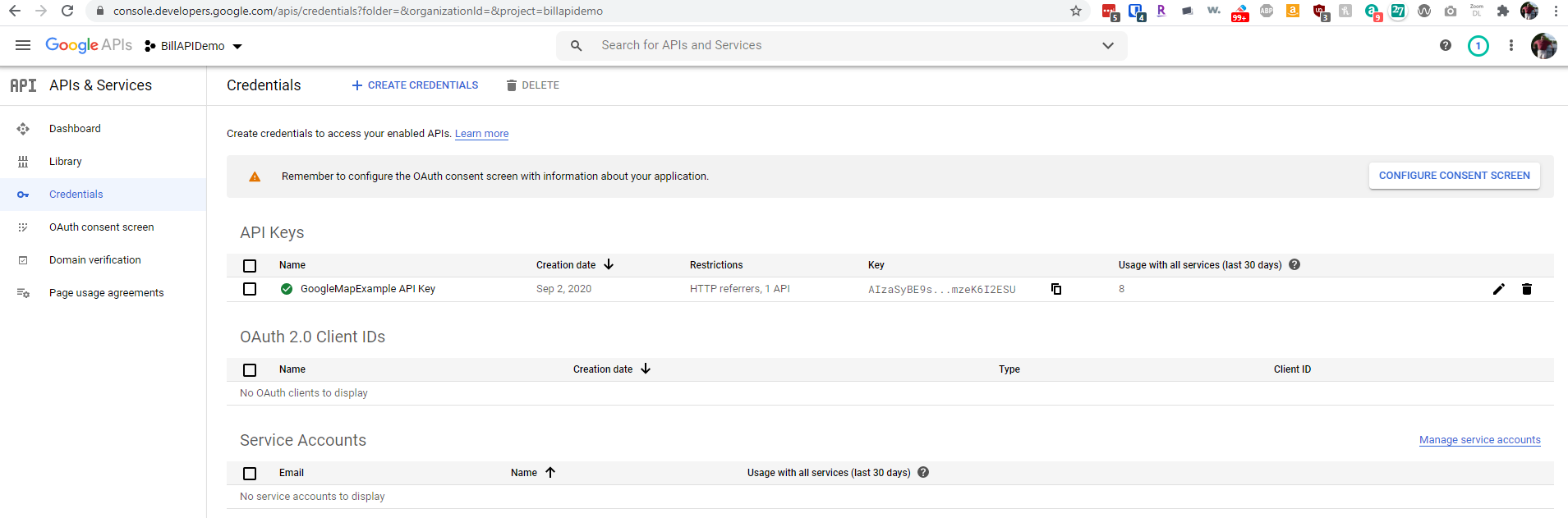

Under the Credentials menu on the left, click the “Edit” icon on your key to manage it. We’re going to add “restrictions” to your key so that others cannot use it. This is especially important if you have enabled billing on your key (which we will not!).

Managing the Key

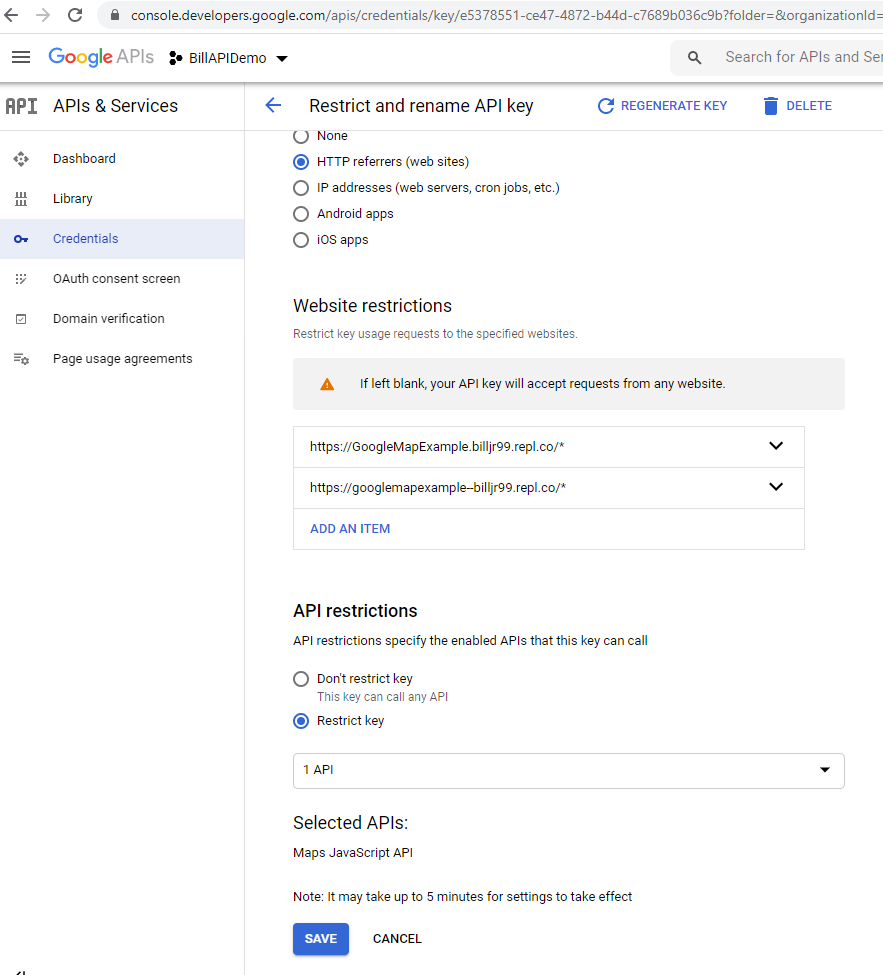

I added an HTTP referrer restriction as shown below. Specifically, I added my repl.it URL (seen on the repl.it browser page on the right side of your repl.it project), with a /* at the end, to show that all URL’s under this domain are acceptable. I added a second variant of the URL for external browser access, which you can see and replicate below. Now, I can only use this key from my repl.it project web page.

Additionally, I added an API restriction and selected “Google Maps API” so that the key can only be used for calls to the Google Maps API, and not to other Google services.

Adding Key Restrictions

Try it out by copying the repl.it URL into a web browser and allowing location access. You will get an error that says the map failed to load, and it will display “For development purposes only” as an overlay on the map, if you do not have billing set up for the Google API service. This is perfectly acceptable, and there is no need to set up any billing accounts!

Part 3: Plotting Locations

Iterate over the food bank latitude and longitude values obtained by issuing a GET request on your web service, and plot them on the map, using the example provided.

Part 4: Identifying the Closest Food Bank

Using the Haversine formula to compute the distance between two points on a sphere, approximate the distance between your current location and each food bank. You may use this example to compute the distance. Choose a custom marker image for the nearest one and add it to the map.

You will want to make your json object that you get from your food bank call a global variable, and then call getPosition() to get your current location. The callback from getPosition (which is showPosition) is where you get the position variable that is your current location. In that function, search your global json array for the closest food bank by computing the distance between each food bank’s latitude and longitude, and your current position’s latitude and longitude. Set a custom marker for this position! For finding the closest location, you can compare each food bank’s location to your current position (this was position.coords.latitude and position.coords.longitude in the showPosition function), keeping track of the closest one (with the minimum distance) to drop a custom marker as you go. You should call getPosition during the callback of your food bank web request, so that you have your json with the food bank locations prior to getting your current position. Put this minimum distance computation loop inside showPosition, where you’ll learn your current latitutde and longitude for comparison. You can make variables from your primary function global by removing the var tag from them. For example map = ... is global, but var map = ... is not.

Finally, add a div tag to the webpage, and set its innerHTML value to the name, address, and computed distance of that food bank, so that they appear on the browser page.

  1. The Google Map code example is adapted from Google Maps Platform Documentation, which is licensed under the Apache 2.0 License. Under the terms of this license, the code example here is also licensed under the Apache 2.0 License, with attribution to the Google Maps Platform and Google. ↩

Submission

In your submission, please include answers to any questions asked on the assignment page in your README file. If you wrote code as part of this assignment, please describe your design, approach, and implementation in your README file as well. Finally, include answers to the following questions:
  • Describe what you did, how you did it, what challenges you encountered, and how you solved them.
  • Please answer any questions found throughout the narrative of this assignment.
  • If collaboration with a buddy was permitted, did you work with a buddy on this assignment? If so, who? If not, do you certify that this submission represents your own original work?
  • Please identify any and all portions of your submission that were not originally written by you (for example, code originally written by your buddy, or anything taken or adapted from a non-classroom resource). It is always OK to use your textbook and instructor notes; however, you are certifying that any portions not designated as coming from an outside person or source are your own original work.
  • Approximately how many hours it took you to finish this assignment (I will not judge you for this at all...I am simply using it to gauge if the assignments are too easy or hard)?
  • Your overall impression of the assignment. Did you love it, hate it, or were you neutral? One word answers are fine, but if you have any suggestions for the future let me know.
  • Using the grading specifications on this page, discuss briefly the grade you would give yourself and why. Discuss each item in the grading specification.
  • Any other concerns that you have. For instance, if you have a bug that you were unable to solve but you made progress, write that here. The more you articulate the problem the more partial credit you will receive (it is fine to leave this blank).

Assignment Rubric

Description Pre-Emerging (< 50%) Beginning (50%) Progressing (85%) Proficient (100%)
Algorithm Implementation (40%) The algorithm fails on the test inputs due to major issues, or the program fails to compile and/or run The algorithm fails on the test inputs due to one or more minor issues The algorithm is implemented to solve the problem correctly according to given test inputs, but would fail if executed in a general case due to a minor issue or omission in the algorithm design or implementation A reasonable algorithm is implemented to solve the problem which correctly solves the problem according to the given test inputs, and would be reasonably expected to solve the problem in the general case
Code Quality and Documentation (30%) Code commenting and structure are absent, or code structure departs significantly from best practice, and/or the code departs significantly from the style guide Code commenting and structure is limited in ways that reduce the readability of the program, and/or there are minor departures from the style guide Code documentation is present that re-states the explicit code definitions, and/or code is written that mostly adheres to the style guide Code is documented at non-trivial points in a manner that enhances the readability of the program, and code is written according to the style guide
Service Endpoint Interface Design (20%) Improper service endpoints are given, or use verbs instead of a CRUD model An arbitrary mapping of service endpoints is given to HTTP verbs (for example, only GET or POST verbs are used) Some service endpoints are ambiguous or improperly mapped Service endpoints are thoroughly defined for the application chosen, with CRUD endpoints that represent nouns that are appropriately mapped to HTTP verbs
Writeup and Submission (10%) An incomplete submission is provided The program is submitted, but not according to the directions in one or more ways (for example, because it is lacking a readme writeup) The program is submitted according to the directions with a minor omission or correction needed, and with at least superficial responses to the bolded questions throughout The program is submitted according to the directions, including a readme writeup describing the solution, and thoughtful answers to the bolded questions throughout

Please refer to the Style Guide for code quality examples and guidelines.
